New xFusion Fusionserver 2488H V6 Servers 25x2.5 Inch Drive Xeon 2*5318H 900W PSU 2*32GB 2488H V6 2U 4-socket Rack Server

Product Description

Product Display

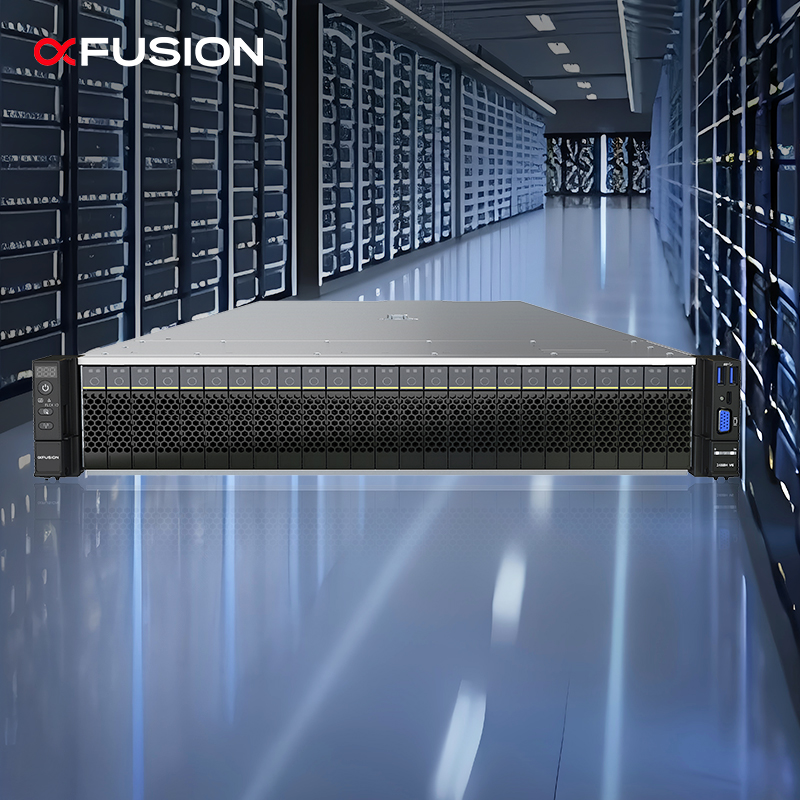

FusionServer 2488H V6 2U rack server
The FusionServer 2488H V6 is the latest 2U 4-socket rack server for cloud computing, virtualization, high-performance computing (HPC), databases, and SAP HANA and other computing-intensive scenarios. Compared with two 2U2-socket rack servers, the 2488H V6 can save OPEX in virtualization scenarios. 2488H V6 in 4 3rd Gen Intel ® Xeon ® Scalable processors, 48 bars of DDR4 memory, 11 PCIe expansion slots, and up to 25 x 2.5" local memory in 2U of space Reserve resources. It integrates patented technologies such as DEMT, intelligent power consumption management, and FDM intelligent fault management, and can be equipped with FusionDirector full life cycle management software, which can be effective Reduce operating costs and increase return on investment.
Product Description

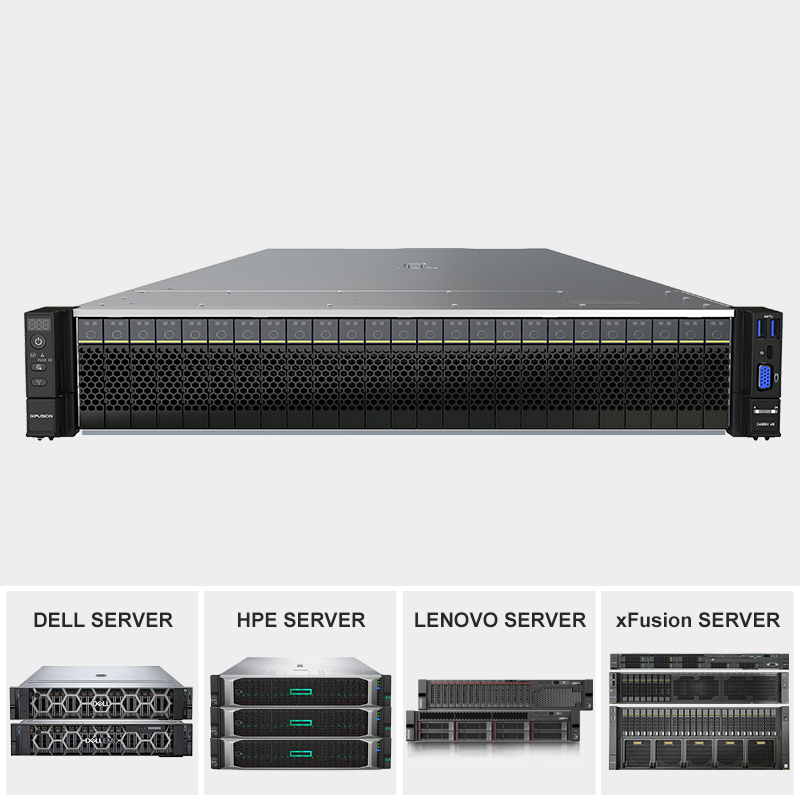

FusionServer 2488H V6
FusionServer 2488H V6 Detail

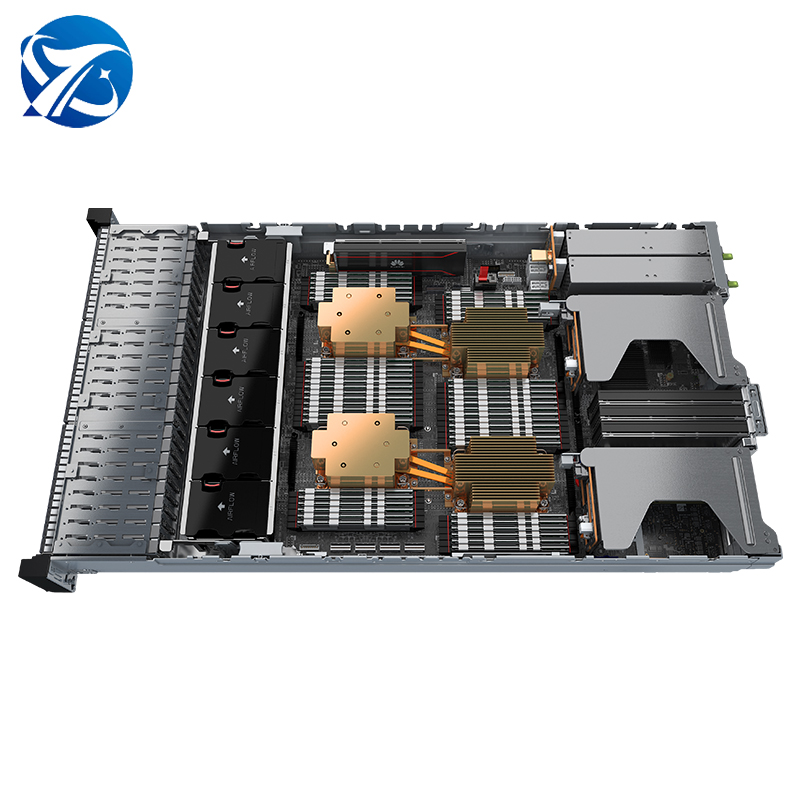

FusionServer 2488H V6 Internal

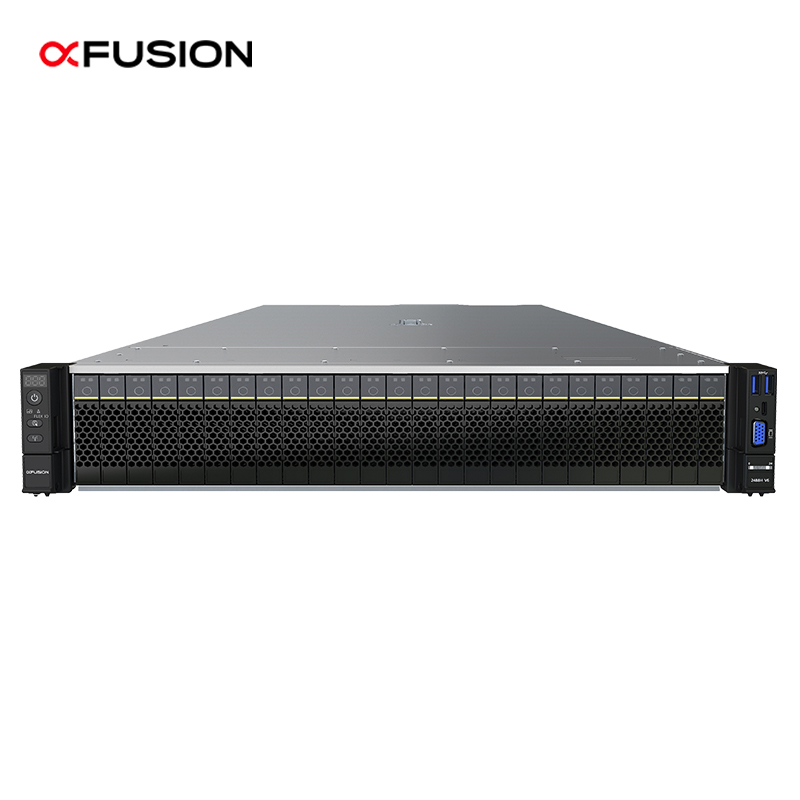

FusionServer 2488H V6 Rear

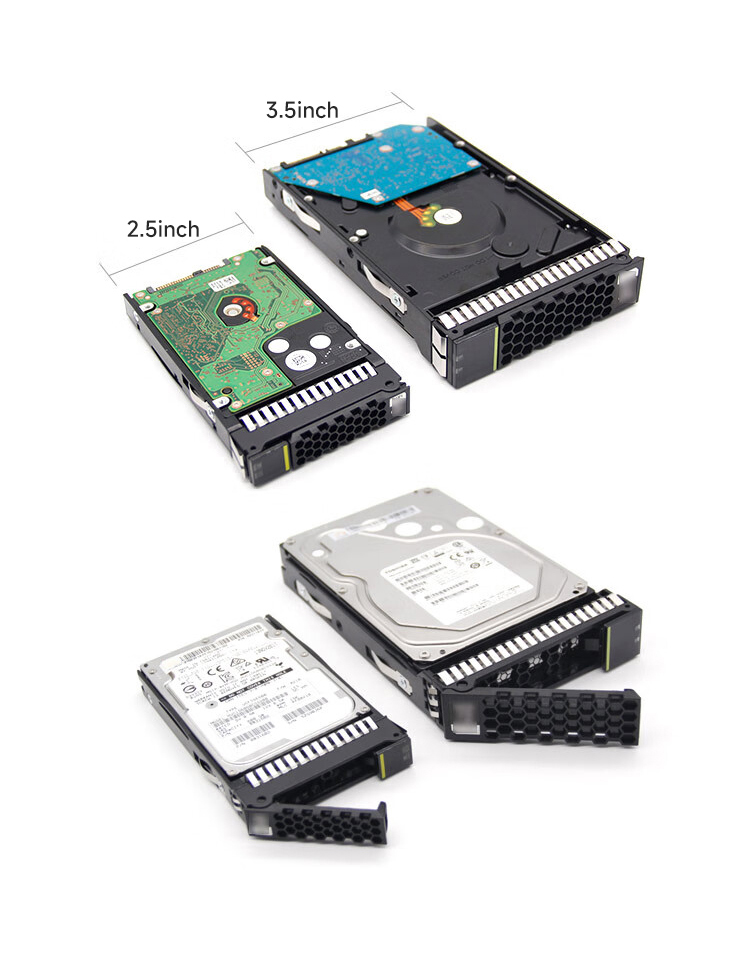

FusionServer 2488H V6 Side

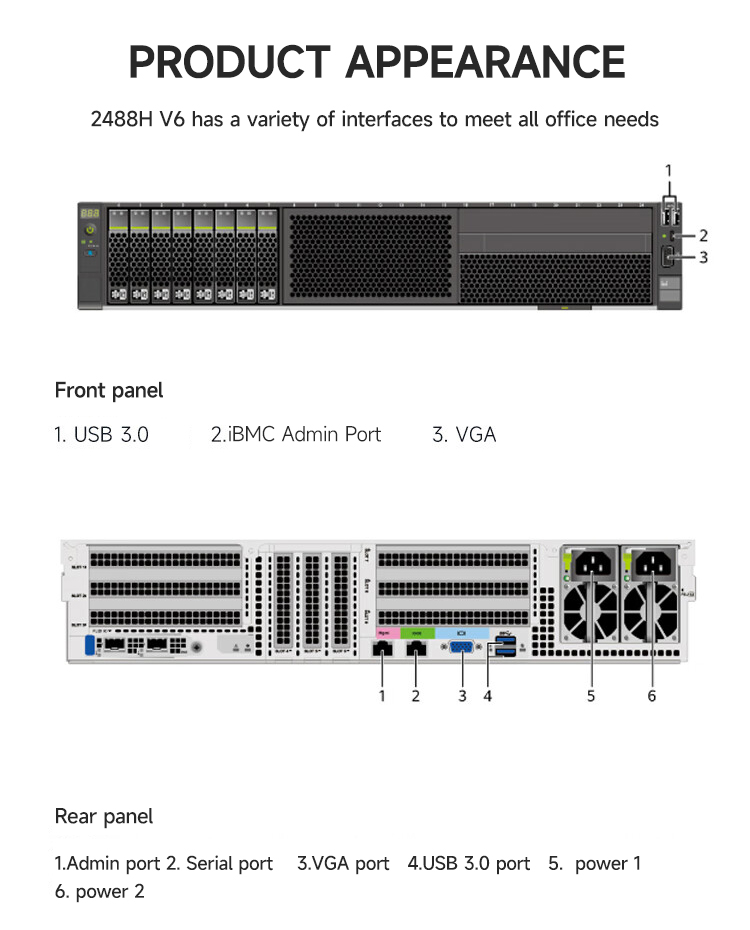

FusionServer 2488H V6 Component

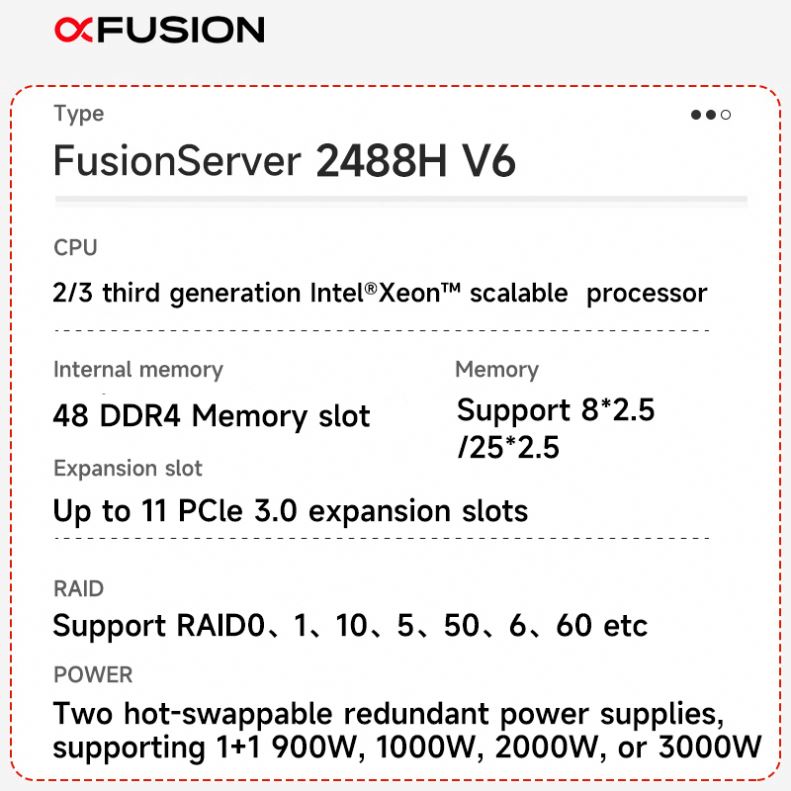

Product Parameters
Server Model 2488H V6
Form Factor 2U rack server
Processors 2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W
Local storage Supports hot-pluggable drives with the following configuration options:
  • 8 x 2.5'' front SAS/SATA drives
  • 24 x 2.5'' front SAS/SATA drives
  • 25 x 2.5'' front SAS/SATA drives
  • 4 x 2.5'' front SAS/SATA drives and 8 x 2.5'' NVMe SSDs
  • 4 x 2.5'' front SAS/SATA drives and 16 x 2.5'' NVMe SSDs
  • 24 x 2.5'' front NVMe SSDs
  • Flash storage: 2 M.2 SSDs

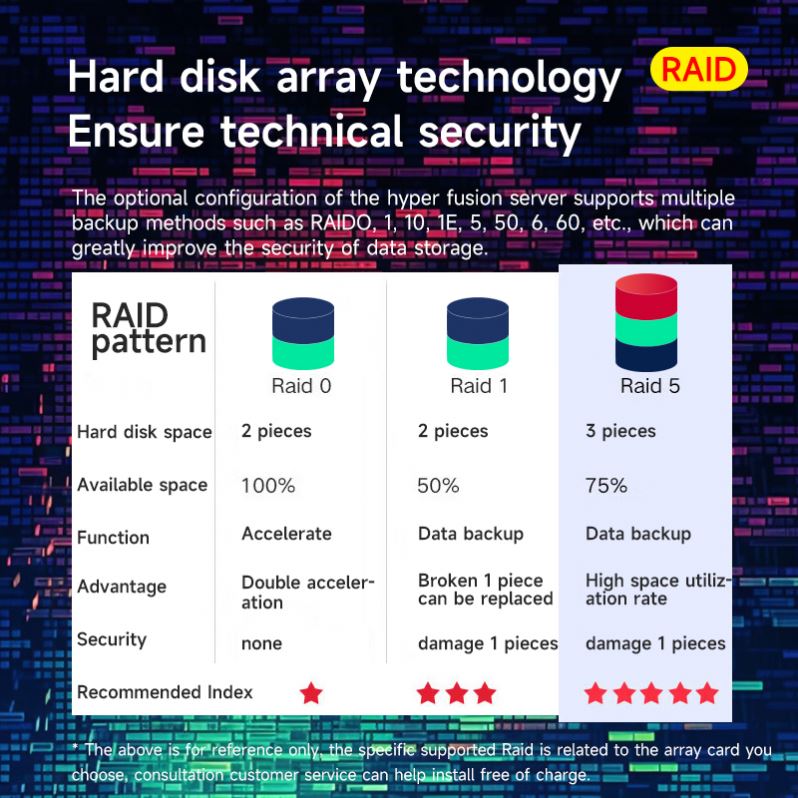

RAID support RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration
LOM network port 1 x OCP 3.0 NIC (optional): 2 x GE/10GE/25GE/100GE ports, supporting hot swap, NC-SI, WOL, and PXE
1 Wi-Fi module (optional): allowing mobile terminals to connect to the iBMC in wireless mode
PCIe extensions Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
Management iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
  • iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management.
  • (Optional) Configured with the management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management.
Operating system (OS) Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi.
Security Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, etc
Heterogeneous accelerator card 2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards.
Fan Modules 6 hot-swappable fan modules in N+1 redundancy mode
Height X Width X Depth Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
Power Supply Units 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
  • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC)
  • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
  • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
  • 1500 W HVDC PSUs (input: 260 V to 400 V AC)
  • 2200 W DC PSUs (input: -38.4 V to -72 V DC)
  • 1200 W DC PSUs (input: -38.4 V to -72 V DC)
FusionServer 2488H V6 Architecture
